Thursday, December 6, 2012

Set 470

For first time visitors I recommend this archive for some of my best posts.






2731. Around 30" diameter:

Larger image


There were a few of these metal pieces along the top:


























2732. 5" long, the business end is similar to a Phillips screwdriver:

























2733. 5" O.D.:

Larger image



7" O.D.:

Larger image

























2734. The large holes are about 36" diameter, take a look at Neatorama for more guesses and a chance to win a T-shirt:

Larger image

























2735. 10" O.D.:

Larger image

































2736. 7" long, sent in by a visitor who was looking to find the purpose of this tool:

Larger image


























Answers:


2731. This is a corn drying rack, corn was stuck onto the small metal parts and left to be air dried, the kernels were then removed from the cob to be used as seed for the following year, patent number 1,638,651:

Larger image
































2732. These are keys that are used to tighten printer's quoins(pronounced "coins", metal wedges that employ friction to hold the type and furniture in the chase):

























2733. These are pipe joint runners. When connecting two sections of pipe the conventional practice was to insert the small end of one into the bell end of an adjoining section and after oakum was caulked in the joint, molten lead was added to keep the oakum in place and form an effective metal seal. These items were used as a barrier to retain the molten metal until it solidified, they also provided a spout or runner through which the molten metal could be poured in the bell, patent number 2,501,484.





Larger image





Larger image

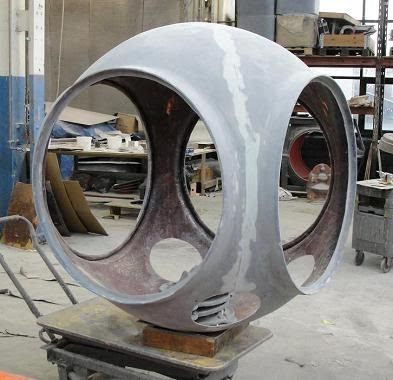

2734. This is the housing for a Verdin four faced street clock:

Larger image



Larger image



Larger image

























2735. This is a dog collar to protect them against wolves when guarding a flock, it may have also been used to protect dogs when hunting wild animals:

Larger image

































2736. A cobbler's lasting tool, it was used to draw and hold leather over a last (a solid form around which a shoe is molded) when making boots and shoes, patent number 25,995:



A similar tool was posted here last year:




Larger image




-----



This video profiles a store in Maine where tools are recycled, it looks like an interesting place:















Are you interested in Old Tools and Tool Collecting? Want to learn more about tools, and meet some great people who have the same interests? Please take a minute to check out the Mid-West Tool Collectors Web Site at this link: www.mwtca.org.































To submit photos, send them to the address in my profile, please include dimensions, any text on the item, and where it was found.




















Last week's set is seen below, click here to view the entire post.








More discussion and comments on these photos can be found at the newsgroup rec.puzzles.

8 comments:

  1. 2732. Quoin keys, to twist a screw that expands an expandable wedge that wedges type into place so it doesn't shift during the printing process.

    ReplyDelete
  2. 2734 Body for a large outdoor clock.

    ReplyDelete
  3. 2732. Agree with first answer, but also used to tighten earlier version of quoin pair that slid against themselves with no screw in the middle. Quoins hold handset type tight in frame (furniture) for printing.

    ReplyDelete
  4. 2733 - Clamp on casing protectors for oil well drilling?
    ~Frau

    ReplyDelete
  5. 2736 reminds me of a shoemaker's tool that was once in this blog...
    2733 could be for sealing leaks in pipes on a boat?
    B.

    ReplyDelete
  6. 2731 Part of a Tesla coil.

    ReplyDelete
  7. I think 2735 is a spiked collar for guard dogs, to keep other dogs or wolves from biting their necks / throats.

    ReplyDelete
