Thursday, December 19, 2013

Set 524

For first time visitors I recommend this archive for some of my best posts.

3055. 5-5/8" tall:


3057. 1-3/8" long:

3058. 8" long:

3059. Sent in by a visitor who would like to find the purpose of this tool:

3060. 20" long, take a look at Neatorama for more guesses and a chance to win a T-shirt.


3055. This is a telephone magneto, it was used to signal the operator or another party when you wanted to make a call.

starting as a means of signaling the operator that you wanted to make a call.

3056. A Craftsman sharpening jig for bench grinders:

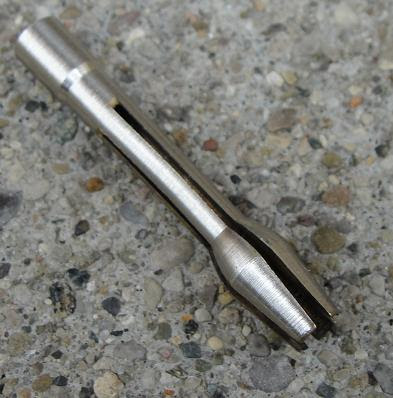

3057. A collet from a Koh-I-Noor pencil, patent number 2,801,613:

 photo rpic3057ba.jpg

 photo rpic3057c.jpg

3058. A corn sheller and general purpose scraper, patent number 790,228:

 photo rpic3058b.jpg

3059. No answer yet for this device:

3060. This is an apple parer, corer, and slicer, patent number 122,553:
 photo rpic3060h.jpg
Larger image

 photo rpic3060g.jpg

Larger images for some of these devices can be seen here.

Are you interested in Old Tools and Tool Collecting? Want to learn more about tools, and meet some great people who have the same interests? Please take a minute to check out the Mid-West Tool Collectors Web Site at this link:

To submit photos, send them to the address in my profile, please include dimensions, any text on the item, and where it was found.

Last week's set is seen below, click here to view the entire post.

More discussion and comments on these photos can be found at the newsgroup rec.puzzles.


  1. 3057 is a chuck for a pin vise
    3060 is an apple peeler/corer/slicer

  2. 3055: Hand cranked generator missing the crank.

  3. 3055:--possibly from the inside of a hand cranked telephone.

  4. 3057 is a tip from a clutch pencil.

  5. 3056 is a jig for sharpening chisel and plane blades on a power grinder

  6. 3057 - drill bit collets
    3059 - Could be used to pick up rolls of Barbed Wire

    3057 - drill bit collets

  7. 3058- Painter's Tool for cleaning brushes and rollers

  8. 3060 - Looks like this tool will not only peal the apple, but slice and core as well.

  9. 3055 Magneto--probably an ignition magneto, probably from an airplane. Telephones had magnetos, bit that doesn't look right for that application, with the drive connection on the back side.

    3056 plane iron sharpening jig as indicated.

    3057 Lead-holder ("draftsman's pencil") collett, probably "KOH-I-NOOR" brand.

    3059 Broken drill-pipe retriever?

    3060 I think apple peeler-corer-slicer is right.

  10. 3060 is for sure an Apple peeler/corer/slicer, but could also serve as a potato peeler-slicer for fries, an orange peeler and segment for the medieval foodie, used in a pinch as a kindling preparer for your wood fired oven stove fireplace, and as an really early eye surgery tool, such like many surgeries back in the day, tended top be less than successful.
