Set 387

For first time visitors I recommend this archive for some of my best posts.




2233. Approximately 24" long:

Larger image



Larger image
























2234. 6" long:


























2235. 11" tall:




























2236. 7" long, take a look at Neatorama for more guesses on this device and a chance to win a t-shirt:

Larger image

























2237. 6-1/2" long:



An older version of the same tool:

Larger image

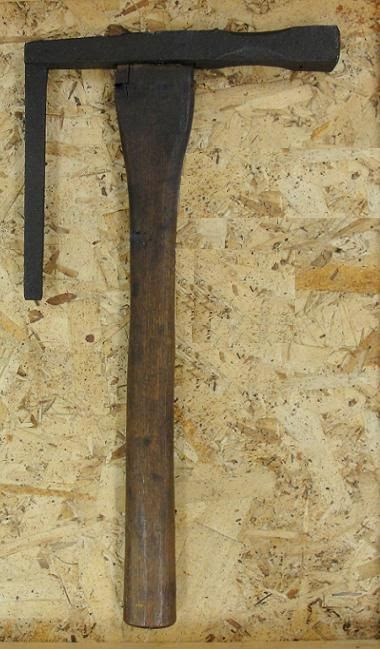

2238. Around 12" long:

From Scotty Fulton's collection



Larger image

































Answers:


2233. A holder for shingles for use when working on a roof:

Larger image



Larger image
























2234. A crossbow bolt or quarrel:


























2235. A Conger chrome railroad lantern, it was used by trainmen to signal the engineer, patent number 2,653,218. Two spare bulbs can be stored in the lid.



It's missing a bulb, the one with a reflector throws a beam and the other would illuminate a wider area, only one bulb could be turned on at a time.




























2236. A betel nut cutter:

Larger image

























2237. An arrow straightener, this first one is for use on aluminum arrows:

A Chumash arrow straightener, the stone was first heated in a fire, the arrow was then placed in the groove, when the wood was hot pressure was applied on both ends of the arrow to remove the bend, more details and photos on how it was used can be seen here.

Larger image
























2238. A carpenter's square hammer:

From Scotty Fulton's collection



Larger image





I own a lot of different tool books but the one that I use first as a reference is the Dictionary of American Hand Tools: A Pictorial Synopsis (Schiffer Book for Collectors)
It has over 4,500 images and is a great book for learning about about a wide variety of tools. This book gets my highest recommendation.

I've decided to become an Amazon affiliate to help pay for the costs of finding and purchasing items to post here. Please consider purchasing books through my links if you are interested in them, there is no additional cost for the buyer and a small percentage will be paid to my account.






To submit photos, send them to the address in my profile.















Last week's set is seen below, click here to view the entire post.








More discussion and comments on these photos can be found at the newsgroup rec.puzzles.
