Thursday, May 24, 2012

Set 442

For first time visitors I recommend this archive for some of my best posts.

2563. Sent in by a visitor who is looking to identify these cylinders, they are 1-1/4" diameter and 3/4" to 1" tall. Three boxes of them were found in a relative's garage. They're a black/red/green bakelite-type hard plastic with metal profiles embedded in one side and ID numbers on the other side. Almost all just have a number on them, but a few have dates from mid-60s (8/18/65 and 1967) and company names Holcroft and Bendix Pinion:

Larger image

Larger image

2564. Around 9' tall, take a look at Neatorama for more guesses and a chance to win a T-shirt:

2565. 6" long, sent in by a reader of this site:

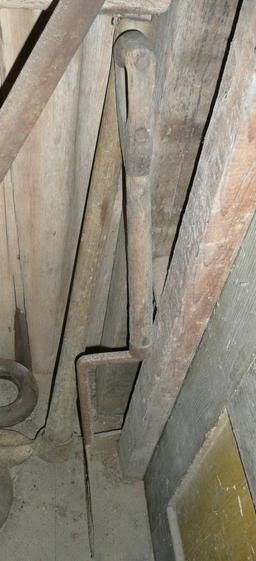

2566. Submmitted by a visitor who is looking to find the exact purpose of this tool:

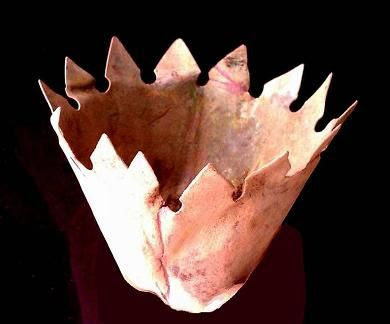

2567. Around 3" diameter, this was found by someone in Murray, Idaho, an old gold mining community started about 1887. It is made of copper and has a solder seam:

2568. 5-1/4" long:

Larger image


2563. These are metallurgical cross section samples for microscopic examination by students or researchers, the numbers on them would correspond to a chart that contained information about each specific type of metal:

Larger image

Larger image

2564. A ramp for loading barrels or kegs onto a beer truck:

2565. This is a combining tube from a Sellers lifting injector. Here is the owner's description of it: "An injector is a device for forcing feedwater into a boiler. They have no moving parts, unlike a pump, and all steam used is returned to the boiler as condensed water. A marvel of thermodynamics. A lifting injector can produce a vacuum on the feedwater line from the water tank and lift water to the device for forcing. This is what the middle slot is for. A non-lifting injector must be mounted below the waterline of the tank (or have a low-pressure pump to feed it) so water will flow to the unit by gravity."

2566. No answer yet for this tool, the only other shovel that I've seen with a bent handle is a sod lifter:

2567. This is probably a decorative piece for a riverboat model, a lamp, a still, or something similar:

2568. A glass worker's tool for snapping off scored glass:

Larger image

Are you interested in Old Tools and Tool Collecting? Want to learn more about tools, and meet some great people who have the same interests? Please take a minute to check out the Mid-West Tool Collectors Web Site at this link:

To submit photos, send them to the address in my profile, please include dimensions, any text on the item, and where it was found.

Last week's set is seen below, click here to view the entire post.

More discussion and comments on these photos can be found at the newsgroup rec.puzzles.


  1. 2563 samples for Metallograhy

    2566 baker's shovel (or spade? ;-)

    2568 a spoke wrench


    1. >2563 samples for Metallography

      Thanks, you nailed it.

  2. Yes, 2563 are metallography samples. I spent a year between school and university casting experimental steel ingots, sawing them up, potting the pieces in resin, grinding them on a disc linisher and hand grinding table, diamond polishing until shiny, then counting inclusions on a Quantimet image analyser

  3. 2563.
    I have a background in Heat Treating of metals and these are samaples set in bakelite and then polished and acid etched for microscopic analysis of grain structure.

    For example;

  4. You may be correct about the riverboat reference for #2567. Many of the smoke stacks were topped with this crown shape.

  5. 2566, Peat spade, for cutting and removing peat moss.
